IMP Splitter 1X2 , 1X3 , 1X3LL(Line Level)
SP1X2 AND SP1X3 MIC SPLITTERS
Part number: See Below
The SP1X2 and SP1X3 provide one direct and one or two transformer isolated outputs, respectively, from a mic level input.* The SP1X2 provides one direct and one isolated output while the SP1X3 provides one direct and two isolated outputs. Each transformer isolated output on these devices features a ground lift switch.
Description
Operating Level: -0.5dB to +4dB
Frequency Response: 20Hz-20kHz ± 0.63dB
Max input level: -0.5 dBu
*(The SP1X3 is also available in a line level version, SP1X3LL )

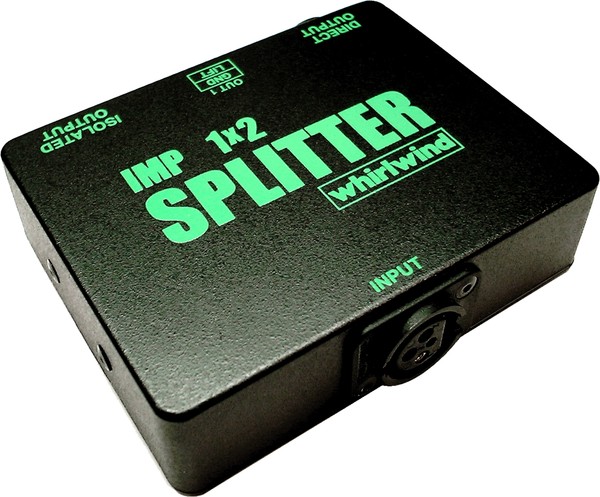

WHIRLWIND IMP SPLITTER (1x2 and 1X3)
On the IMP Splitters are male XLR jacks, one female XLR jack and one switch as outlined below. (Note: Sections in parenthesis refer only to the IMP Splitter 1X3 and all other sections refer to both. )
INPUT
Female XLR input jack for connection of a low impedance balanced signal such as that of a microphone.
DIRECT OUTPUT and ISOLATED OUTPUT (1 and 2)
Male XLR jacks. The DIRECT OUTPUT is a straight through connection from the input jack and will pass phantom power. The ISOLATED outputs each provide a low impedance (150 Ohms) balanced output signal through a Whirlwind TRSP transformer and WILL NOT pass phantom power.
GND/LIFT OUT 1 (OUT 2)
Disconnects the ground between the input and the output when set to the LIFT position. Ground remains connected when set to the GND position. The DIRECT OUTPUT always has a connected ground.
SP1X3LL 1X3 Line Level Splitter
The SP1X3LL provides one direct and two transformer isolated outputs from a line level input. The signal level at each transformer isolated output is 6 dB lower than the level of the direct output. The transformer outputs have individual ground lift switches.
