DA-2
The DA-2 drives multiple isolated line feeds from a single input source. It is ideal for driving lines to multiple amps in live sound applications, distributing audio to multiple tape decks, feeding signals to multiple zoned locations, etc.
PRODUCT
description

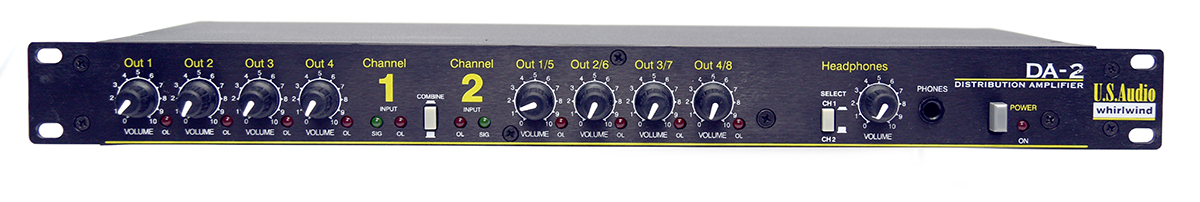

In normal (stereo) mode, the DA-2 provides four outputs per each of two inputs. A front panel COMBINE switch applies both inputs to all 8 outputs, where the DA-2 becomes a one or two in, eight out DA.
Each output is ground lifted and has its own level control and clip indicator light. Input signals are monitored by signal-present LEDs and clip LEDs. The headphone circuit can be switched to monitor either channel.
All audio connections are made through actively balanced line level XLR connectors.
Where transformer isolation is necessary, the ISO-8 (a 1U 8-channel accessory) is available.
Frequency Response: 20Hz-20kHz ±0.3dB
Maximum Input level: +22dBu
Input Impedance: 1Meg Ohm
Common Mode Rejection: 90dB at 60Hz
Maximum Output Level: +22dBu
Output Impedance: 112 Ohm
S/N at 0dB Input, 0dB Gain: 87dB
Rise Time: 3µS
Total Harmonic Distortion: 0.004% @ 1kHz
Output Channel Separation: 74dB
Headphone Impedance: 75 Ohm
minimumChannel Output Gain: 18dB
Power Requirements: 115 VAC (240 VAC model available; DA-2X)
Dimensions (LxWxH): 22x10x5*
Weight (lbs): 7.25*
*shipping dimensions
